Single Phase 1000KG Electric Chain Hoist Electric Chain Fall With Hook / Trolley

Brand Name : SEAGULL

Model Number : SG

Certification : CE

Place of Origin : China,Jiangsu

MOQ : 50pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000 sets per year

Delivery Time : 30 days

Packaging Details : carton and pallet

Condition : New

Usage : Construction Hoist

Power Source : Electric

Maximum Lifting Weight : 1000KG

Warranty : One Year

material for portable crane : Aluminum Alloy

function : lifting

Lift Speed : Depends

Color : Optional

Contact Now

single Phase Factory wholesale 1000KG Electric Chain Hoist with hook or trolley



Product Description
(1) With suspension hook. push, geared or electric trolley.
(2) Standard lift height 3 m, control cable 3m
(3) Operating voltage 220-460V, 50/60Hz, 1-3 phase
(4) Low voltage control 24V is standard.
(5) High efficient energy-saving motor, asbestos free brake system.


Features:
A.Aluminium Body
B.Quality chain is supplied by FEC Japan
C.Most tensile safety hooks without break
D.Compact and high efficient motor with heat protection device
E.Choose double speed motor,big power and different voltage are available
F.Push button is with 24V low voltage to guarantee safety and limit switch system
G.Sensitive break system.Friction disk without asbestos
H.Choose presice process of high tensile helix gear working system to keep lower noise
I.Enough Chain bucket set.space to suit different lifting longth
J.IP54 protection on electric hoist for dust and water protection
K.Ins Class:F

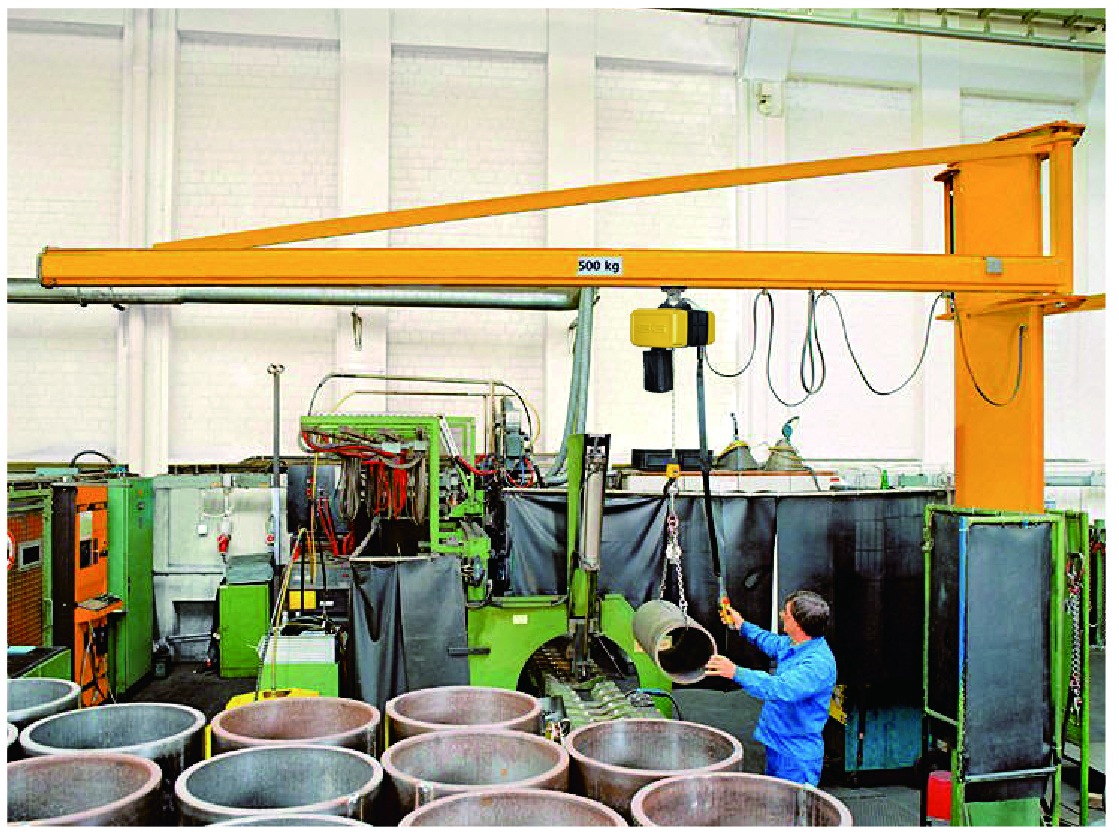

Application

Single Phase 1000KG Electric Chain Hoist Electric Chain Fall With Hook / Trolley

Technical Parameters

SG ELECTRIC HOIST
Work class M3 M4 M5 M6 M7
150 180 240 300 360

Lifting speed
(m/min)

Lifting height
(m)

Power km
(M3)

Weight
(kg)
%ED 25% 30% 40% 50% 60%
Model Capacity
SGXXX/1N 500 400 320 250 200 8 3 0.8 25
SGXXX/1NF 500 400 320 250 200 8/2 3 0.8/0.2 25
SGXXX/1S 320 250 200 160 125 12.5 3 0.8 25
SGXXX/1SF 320 250 200 160 125 12.5/3 3 0.8/0.2 25
SGXXX/1H 200 160 125 100 80 20 3 0.8 25
SGXXX/1HF 200 160 125 100 80 20/5 3 0.8/0.2 25
SGXXX/2N 1000 800 630 500 400 4 3 0.8 27
SGXXX/2NF 1000 800 630 500 400 4/1 3 0.8/0.2 27
SGXXX/2S 630 500 400 320 250 6.3 3 0.8 27
SGXXX/2SF 630 500 400 320 250 6.3/1.5 3 0.8/0.2 27
SGXXX/2H 400 320 250 200 160 10 3 0.8 27
SGXXX/2HF 400 320 250 200 160 10/2.5 3 0.8/0.2 27



Single Phase 1000KG Electric Chain Hoist Electric Chain Fall With Hook / Trolley
 Single Phase 1000KG Electric Chain Hoist Electric Chain Fall With Hook / TrolleySingle Phase 1000KG Electric Chain Hoist Electric Chain Fall With Hook / Trolley


for information down load thie PDF:

SEAGULL ELECTRIC HOIST SG TYPE.pdf
